PVB Lamination Film

Features of PVB Lamination Film

• PVB interlayer film is a semi-transparent film made of polyvinyl butyral resin plasticized with plasticizers and extruded into shape.




• PVB interlayer film has safety, anti-theft, explosion-proof, soundproofing, and energy-saving properties.




• PVB interlayer film has good adhesion to inorganic glass.




Application Cases

• PVB interlayer film is one of the best adhesive materials used in the manufacture of laminated safety glass in the world today.




• Laminated glass PVB interlayer film is widely used in the construction and automotive industries.




• PVB interlayer film manufactured using special processes is used in aerospace, military, and high-tech industries.

Frequently Asked Questions (FAQ)

1. What thickness and size options are available for PVB lamination film?

PVB lamination film comes in a variety of thicknesses such as 0.38 mm, 0.76 mm, 1.14 mm, and 1.52 mm. Widths can be customized based on project requirements (typically up to ~3.3 m for architectural applications).

2. How does PVB film improve laminated glass performance?

PVB interlayers provide excellent adhesion to glass, significantly reducing glass fragment fallout upon breakage and improving safety, sound insulation, and UV control when laminated under heat and pressure.

3. Can PVB lamination film be used in both architectural and automotive applications?

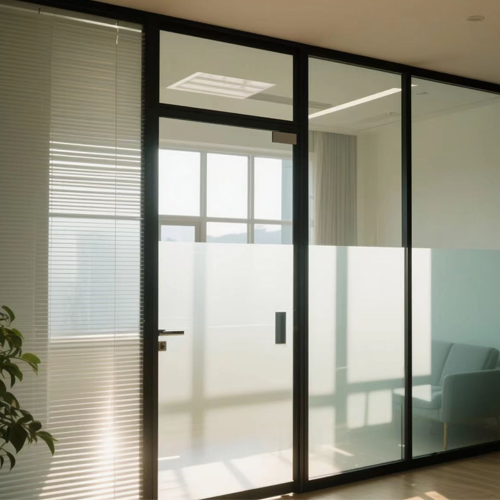

Yes. PVB film is widely used in architectural laminated glass (curtain walls, skylights, partitions) as well as automotive windshields and specialty laminated products due to its balance of clarity, safety, and performance.

4. How does the thickness of PVB film affect performance?

Thicker PVB interlayers generally offer higher impact resistance, better sound reduction, and improved UV performance, while thinner films are suitable for standard safety and architectural applications. Choosing the right thickness depends on glass size, performance requirements, and design goals.

5. Is PVB lamination film suitable for outdoor and high-humidity environments?

PVB film has good adhesion and durability, but prolonged exposure to moisture — especially at exposed edges — can affect performance. Proper edge sealing and installation practices help maintain long-term integrity in outdoor settings.

6. Can laminated glass made with PVB interlayer help reduce noise?

Yes — the viscoelastic nature of PVB interlayer helps attenuate sound transmission, reducing noise penetration through the glass and improving acoustic comfort.

7. Can PVB laminated glass be used for safety and security purposes?

Absolutely. Even though PVB is not as stiff as some structural interlayers, when combined with appropriate glass thickness and layering it can still hold broken glass fragments together, mitigating injury and intrusion risk.

8. Are there color or special feature options available for PVB film?

Yes. PVB films can be produced in clear, extra-clear, and colored variants, and can also incorporate functional additives for solar control or aesthetic design requirements.

9. What should be considered during lamination processing?

PVB lamination requires proper glass surface preparation, controlled temperature/pressure cycles, and degassing steps to avoid air bubbles and ensure strong interlayer bonding and optical clarity.

10. Can PVB lamination film be combined with other interlayer types?

Yes. PVB interlayers are often used in combination with other films (e.g., TPU, EVA, SGP) or temper glass layers to achieve a balance of safety, structural strength, acoustic performance, or design goals — tailoring performance for specific applications.
